Plant Management

1. PLANT MANAGEMENT

1.1. CREATING A PLANT

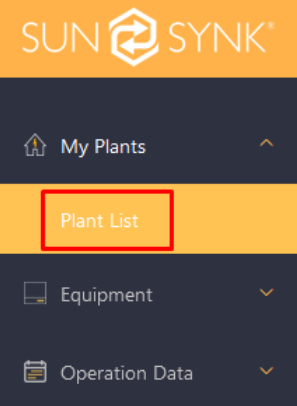

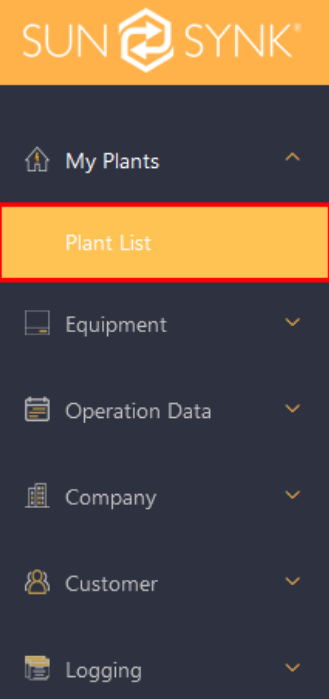

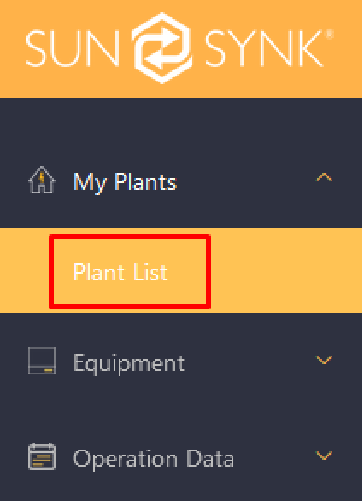

In the menu, first click ‘My Plant’, then ‘Plant List’.

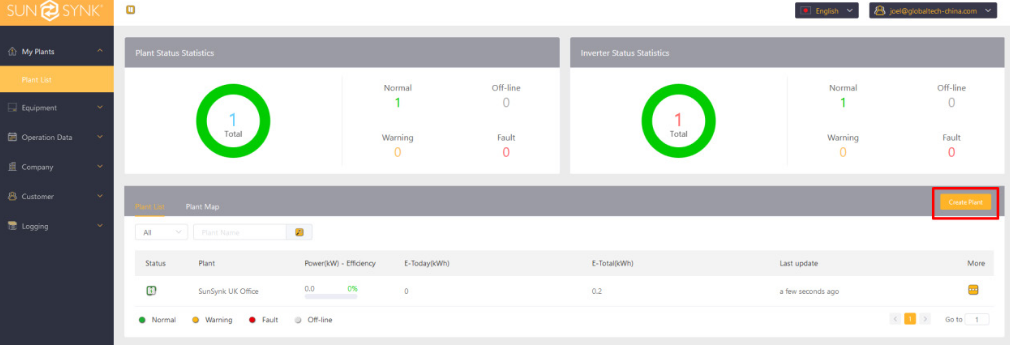

1. To create a new plant, click ‘Create a Plant’ on the right corner of the page.

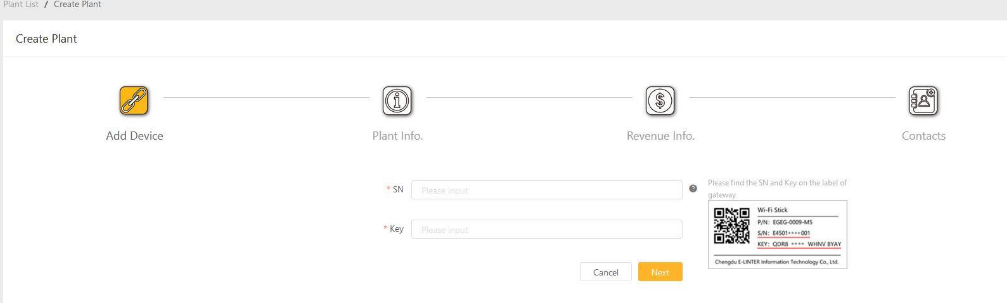

2. Enter the Serial Number (SN) and KEY on the Data Logger label, then click the ‘Next’.

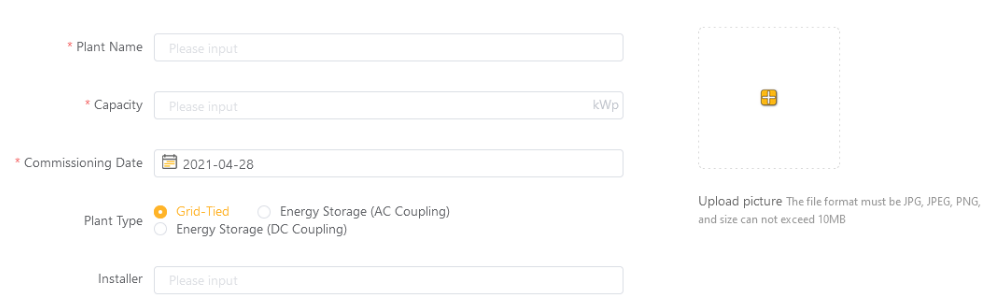

3. Enter the total capacity in ‘Capacity’ select the correct type in ‘Plant Type’, the information displayed on the page will be different if choose different types of plants. To ensure the accuracy of the plant statistics, please fill in the information on the page correctly.

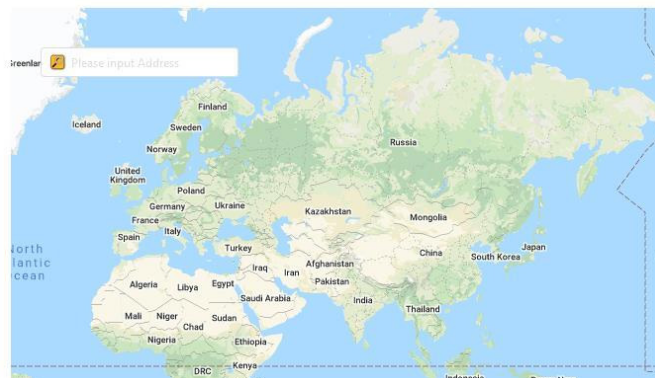

4. You can enter the installation address of the plant in the address input box on the map to locate the specific installation location or you can use the map to select the correct installation location.

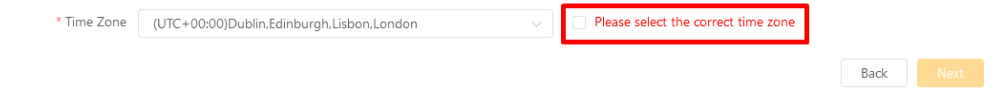

5. Also, please confirm if the time zone of the plant is correct. If it is not, please change it. Finally, click ‘Next’.

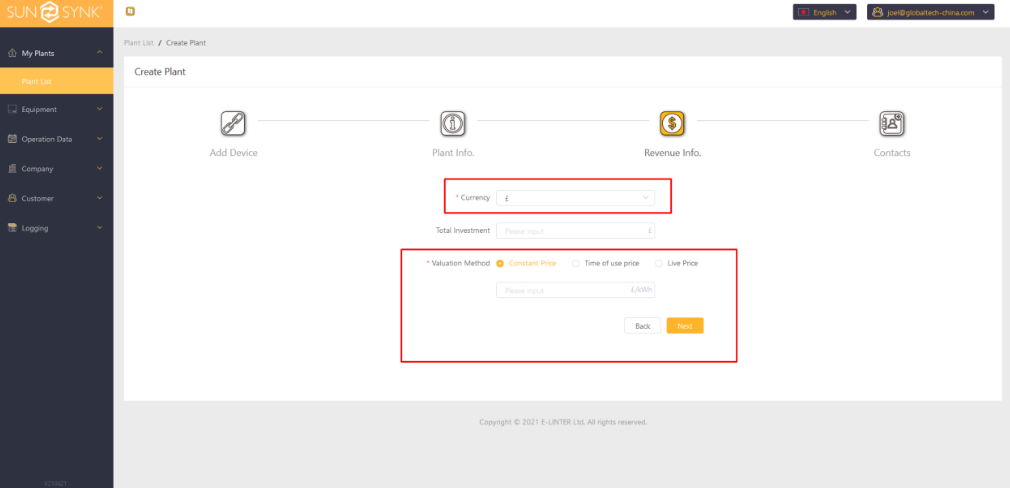

6. Select your currency, your total investment, and your preferred Valuation Method.
Note: The Live Price option is only currently available for UK customers.

7. Enter the name of the user who is going to manage the system, their phone number, and e-mail.

1.2. ADDING A DEVICE

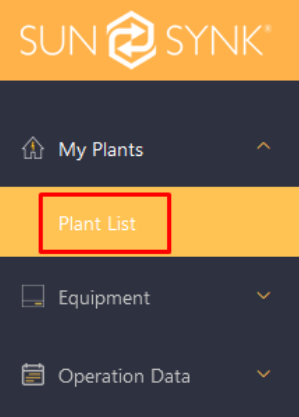

In the menu, first click ‘My Plant’, then ‘Plant List’.

1. Select the plant that need to add equipment from the ‘Plant List’.

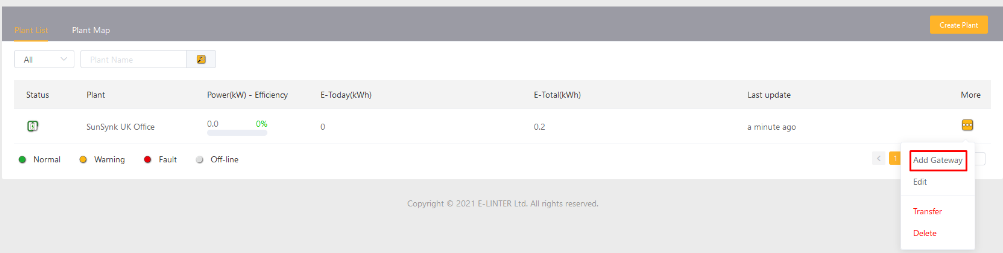

2. Click the ‘More (...)’ button and Select ‘Add Gateway’.

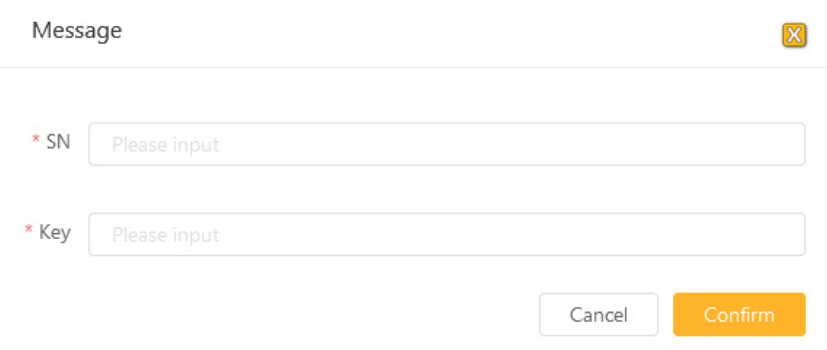

3. Input the serial number SN and Key of the Data Logger to be connected, and finally ‘Confirm’

1.3. EDITING A PLANT

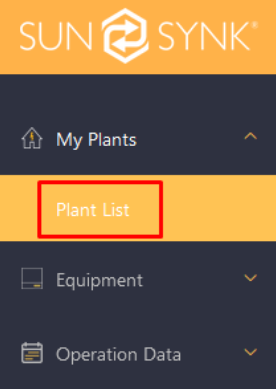

In the menu, first click ‘My Plant’, then ‘Plant List’.

1. Select the plant that need to be edited from the ‘Plant List’.

2. Click the ‘More (...)’ button and select ‘Edit’ to enter the Edit Plant page in order to make the changes to the plant.

1.4. TRANSFERING A PLANT

In the menu, first click ‘My Plant’, then ‘Plant List’.

1. Select the plant that need to be edited from the ‘Plant List’

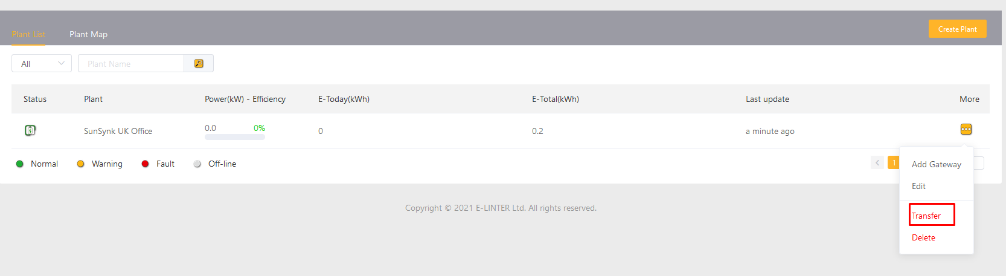

2. Click the ‘More (...)’ button and select ‘Transfer' to enter the Transfer Plant page in order to make the changes to the plant.

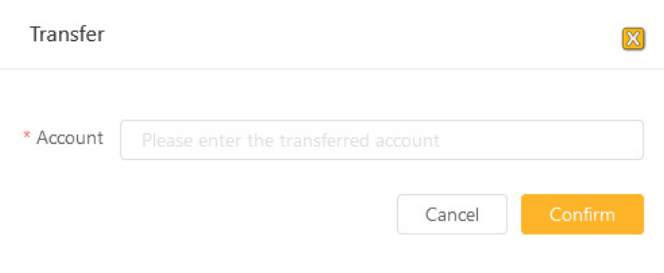

3. Enter the user’s account in the pop-up window to complete the transfer of the plant.

1.5. DELETING A PLANT
In the menu, first click ‘My Plant’, then ‘Plant List’.

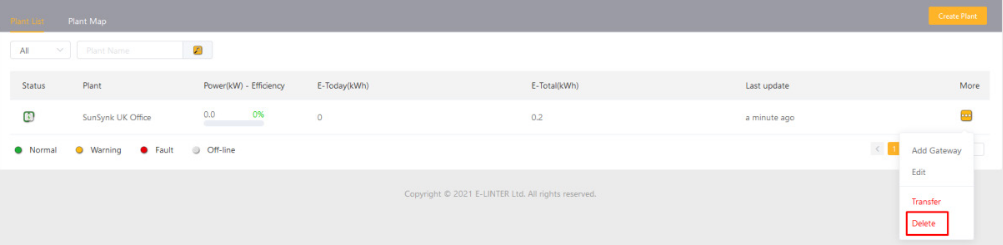

1. Select the plant that need to be deleted from the ‘Plant List’.

2. Click the ‘More (...)’ button and select ‘Transfer to enter the Transfer Plant page in order to make the changes to the plant.

1.6. PLANT MAP

In the menu, first click ‘My Plant’, then ‘Plant List’.

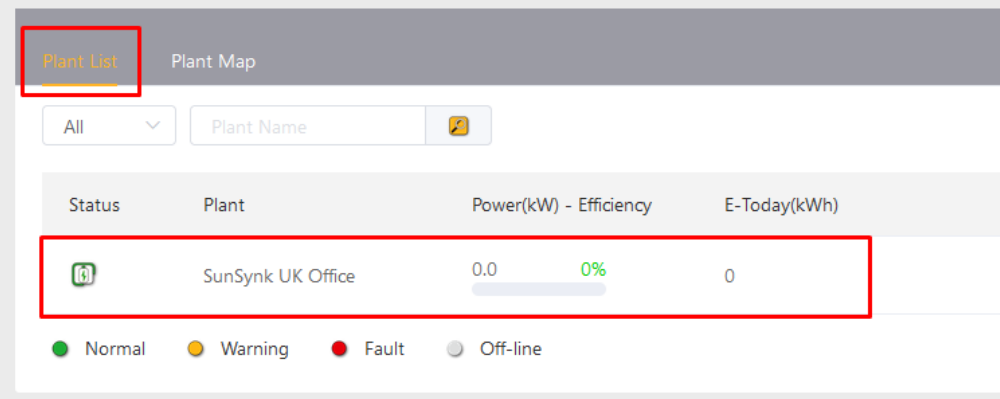

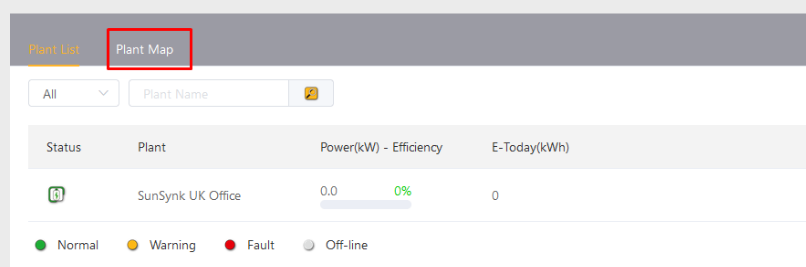

1. Click ‘Plant Map’.

A map with the listed plants will be displayed.

1.7. INVERTER STATISTICS

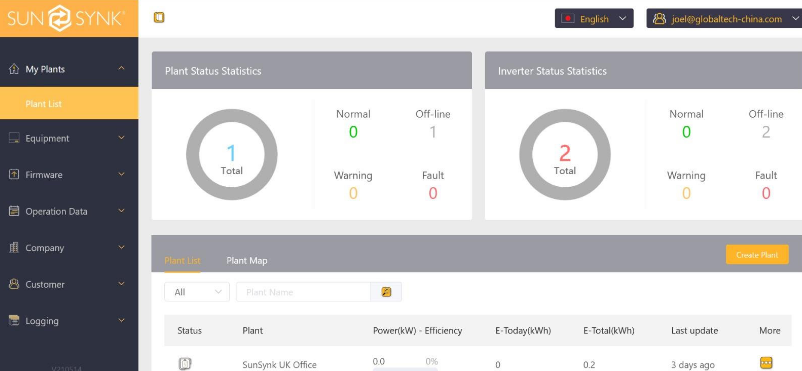

Click in the menu: ‘My Plant’ -> ‘Plant List’, you can intuitively know the statistical quantities of status of all inverters under this account in [Inverter Status Statistics].

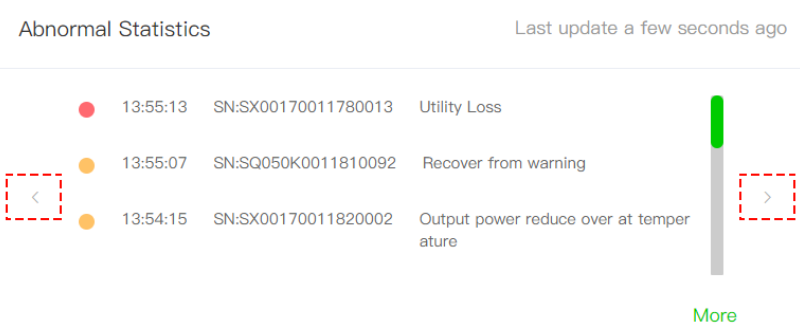

Click the < or > icon to view the abnormal information of the inverter in the last hour, as shown in the following figure

1.8. PLANT OVERVIEW

In the menu, first click ‘My Plant’, then ‘Plant List’.

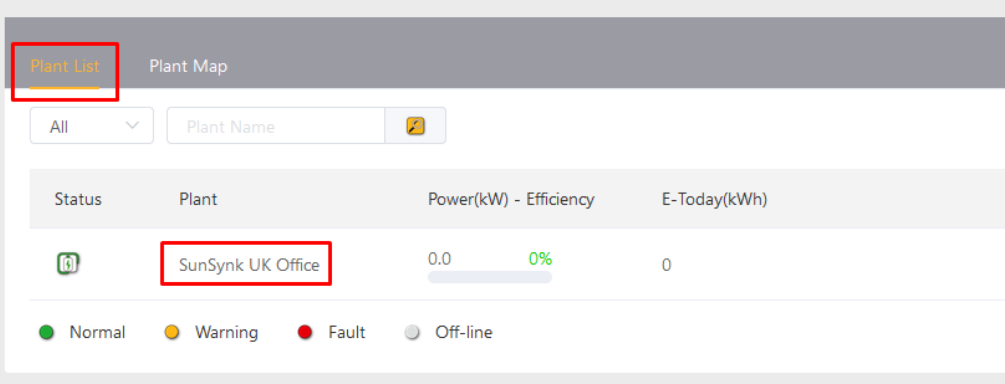

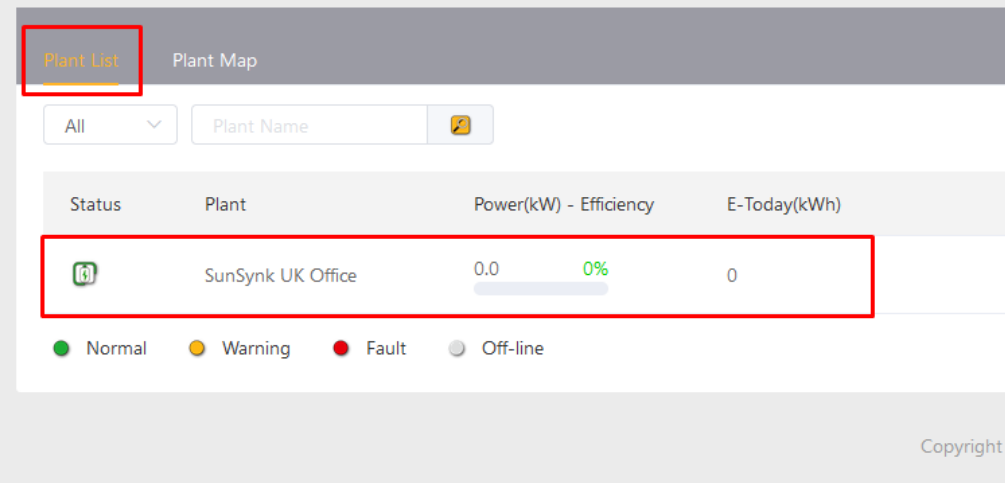

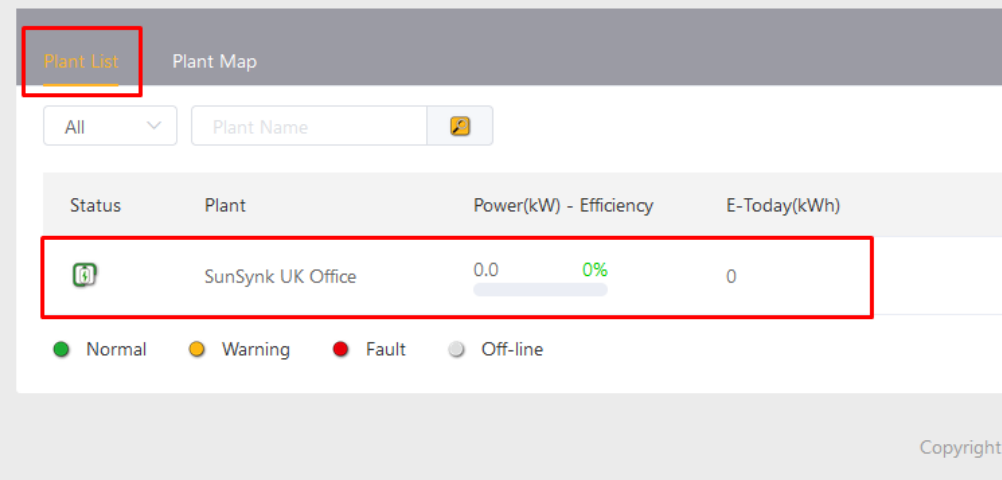

1. Select plant list ‘Plant List’ and click the corresponding plant name to enter the plant Overview page.

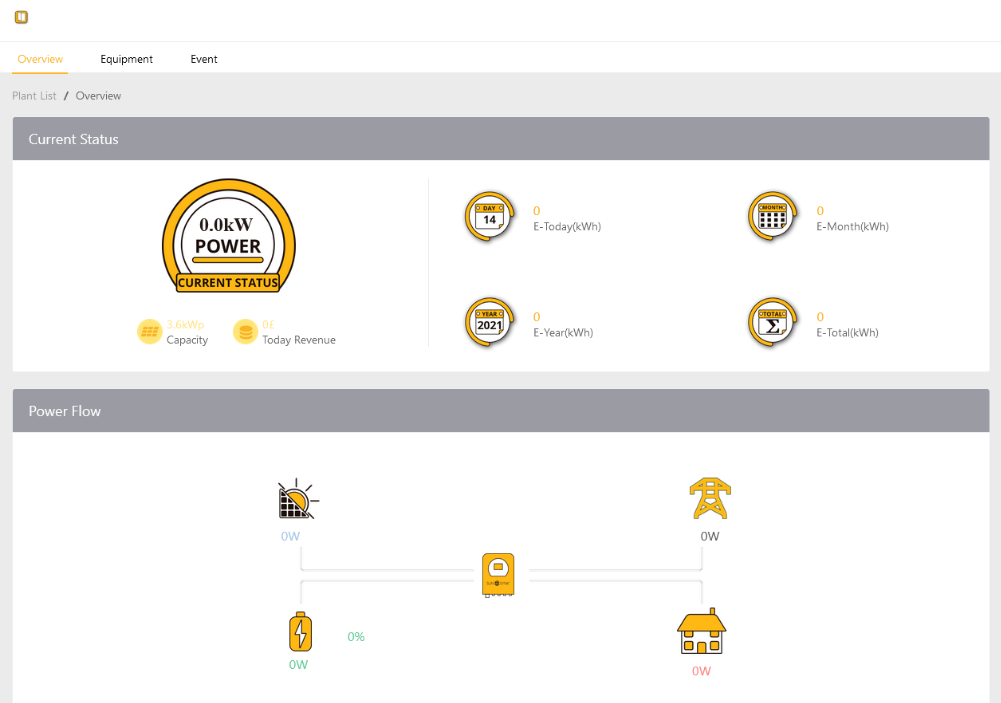

2. In the plant overview page, you can view the status of the plant, weather information, energy flow diagram, inverter status, abnormality in the past hour, power generator chart and other information.

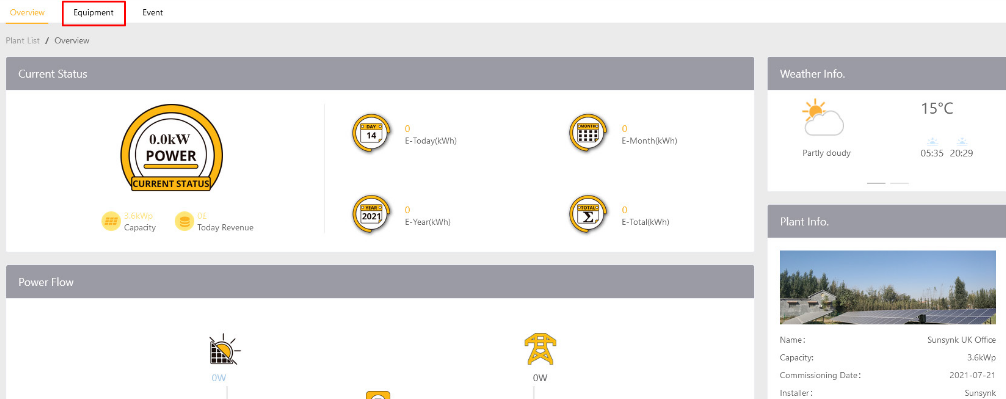

3. Click ‘Equipment’ in the Overview page to enter the Equipment page. Here you can view all the equipment in the plant, the corresponding operational data charts, remote upgrades, parameter Settings, and other operations.

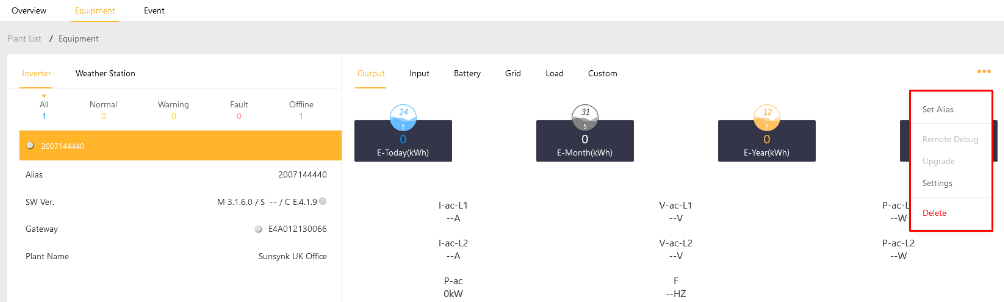

4. In the Equipment page, click the more button ‘(…)’ in the upper right corner to set an alias for the device, perform remote upgrade, and change inverter settings / parameters, as shown in the figure below.

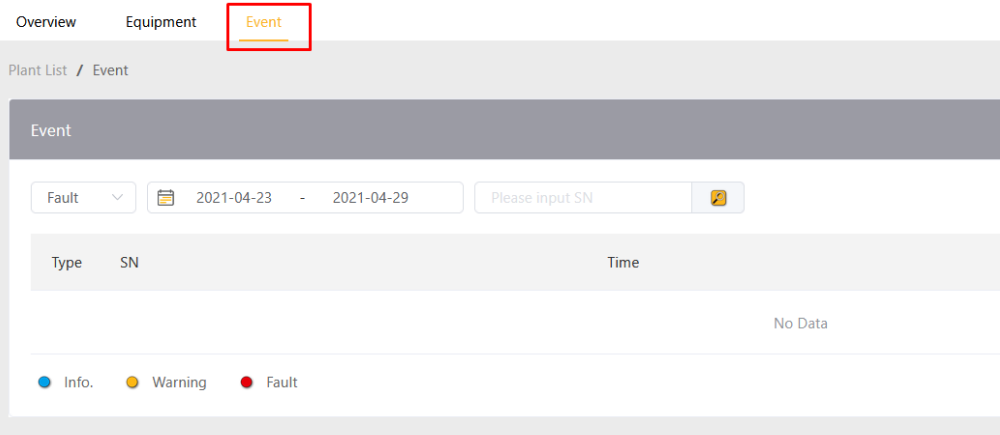

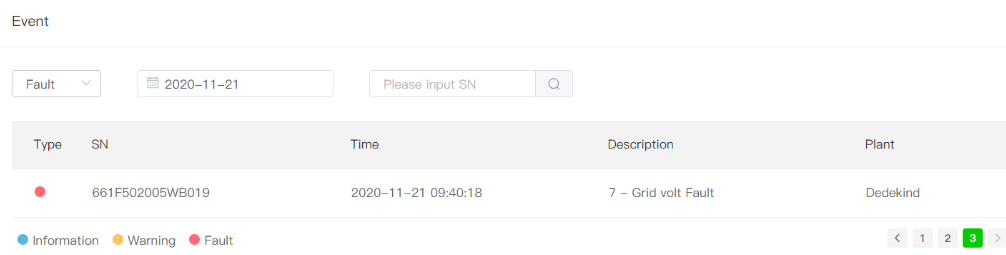

5. Click ‘Event’ menu in the power plant Overview page to switch to the Event page.

Here you can view the current plants abnormal information, as shown in the figure below.
