Sunsynk Connect Equipment Management.

4.1. GATEWAY MANAGEMENT

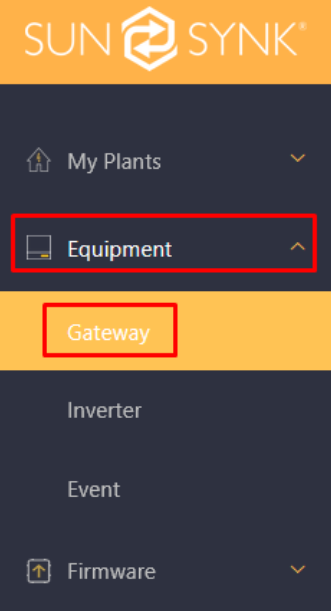

In the menu, click ‘Equipment’ -> ‘Gateway’, to enter the Gateway List page.

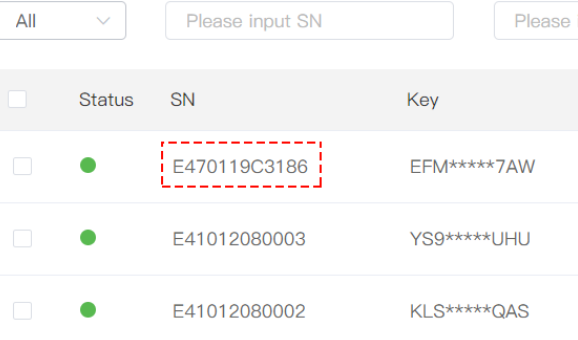

In the Gateway List page, click on the ‘SN’ of a gateway to view the detailed information of the Data Logger.

If you need to remove the gateway from a power station, you need to unbind the gateway from the plant where it is located. The specific operation is as follows:

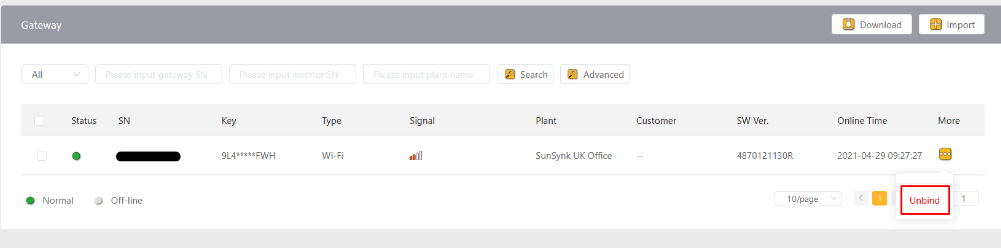

1. Select the gateway to be unbound on the Gateway List page.
2. Click the more button ‘(…)’ and select ‘Unbind’ in the popup menu.
3. Follow the prompts to complete the unbind operation, as shown in the following figure.

4.2. GATEWAY DISTRIBUTION

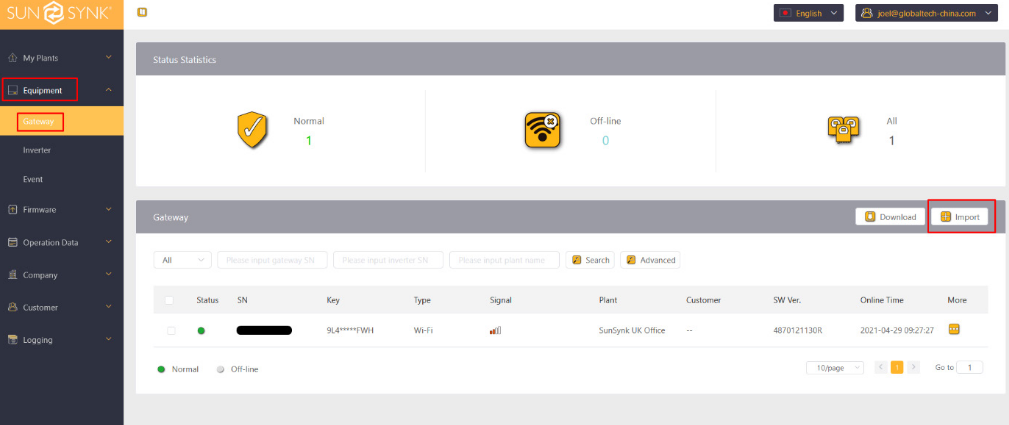

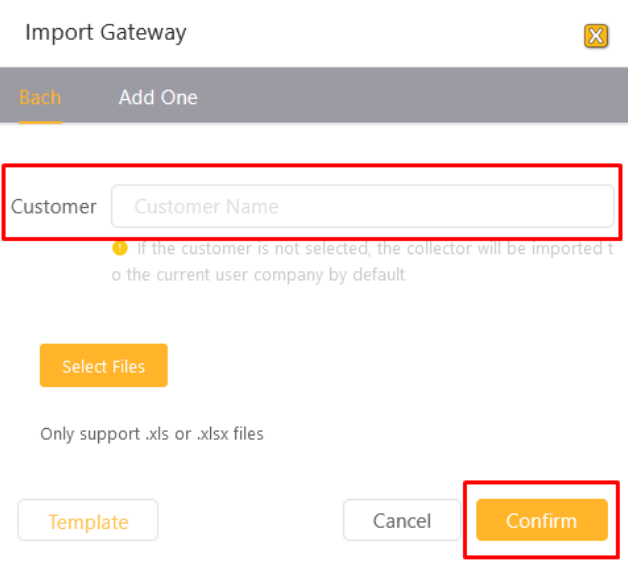

In the menu, click ‘Equipment’ -> ‘Gateway’, enter the Gateway Management page and click the ‘Import’ button.

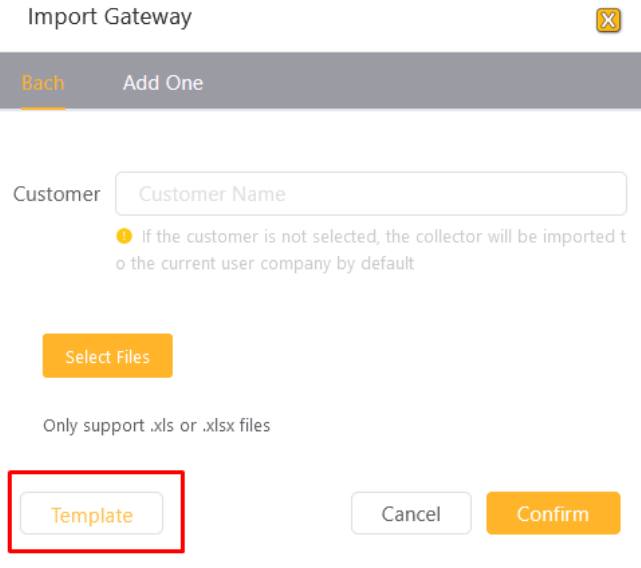

1. Click ‘Template’, download the template for importing the gateway, fill in the SN and KEY for the gateway to be assigned to the template, and save it.

2. Click the ‘Select File’ button to select the template file that has been written in the Data Logger information.
3. Select assigned/imported customers (Dealers/Distributors) and then confirm.

4.3. INVERTER MANAGEMENT

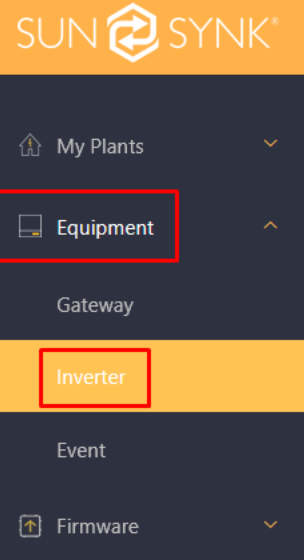

In the menu, click ‘Equipment’ -> ‘Inverter’ to enter the Inverter List page.

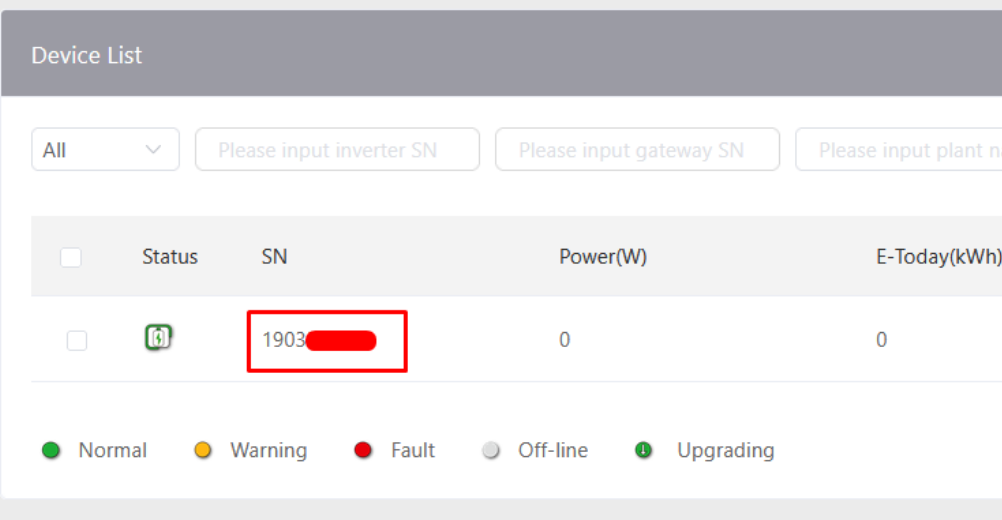

1. In the Inverter List page, click on the SN of an inverter to view the detailed information and operational data of the inverter.

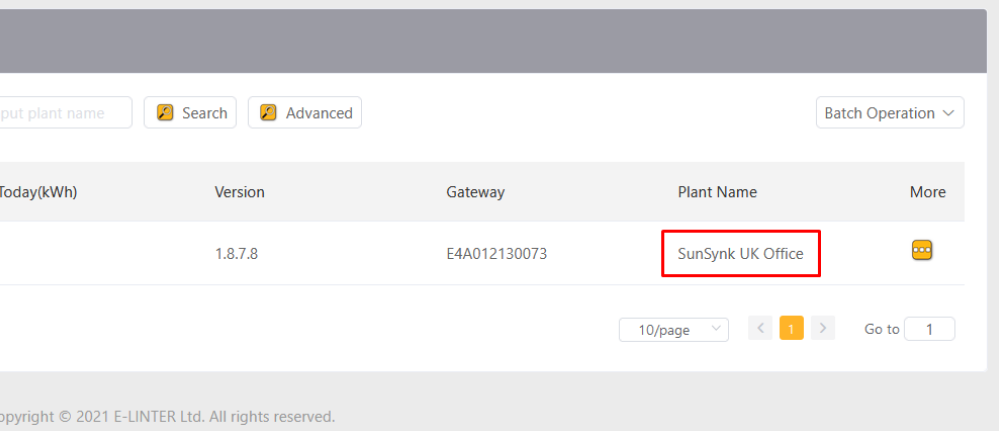

2. Click on the plant name to enter the plant of the inverter.

4.4. CHANGE INVERTER SETTINGS

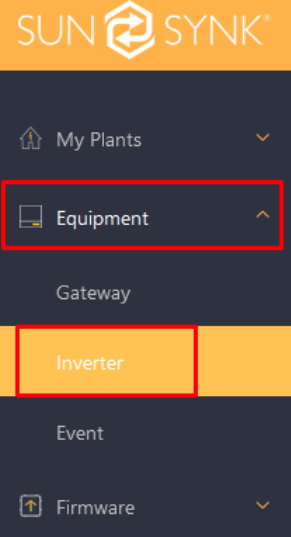

In the menu, click ‘Equipment’ -> ‘Inverter’ to enter the Inverter List page.

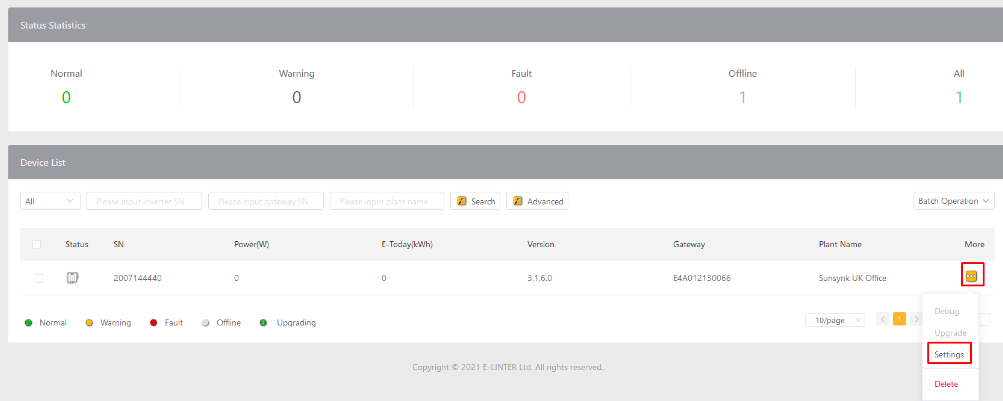

In the Inverter List click More ‘(…)’, then select the Inverter you wish to edit the settings, and finally click ‘Settings’.

You will then have access to the settings for that inverter such as Battery Setting, Timer, Grid Setting, Aux Load Output, Basic Setting, Advanced Setting.

4.5. INVERTER FIRMWARE MANAGEMENT

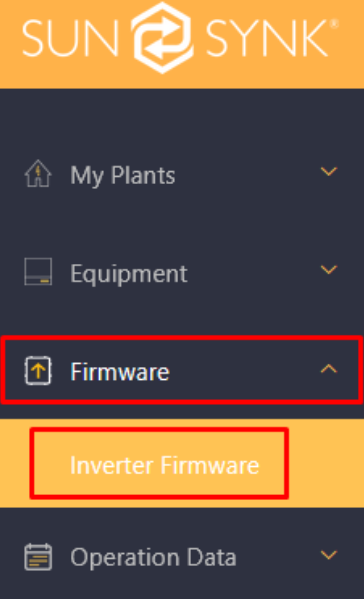

In the menu, click ‘Firmware → ‘Inverter Firmware’ to enter the Inverter Firmware page.

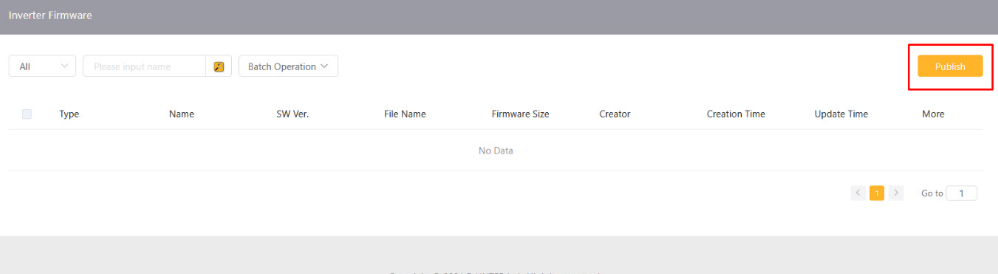

Click the ‘Publish’ button and follow the prompts in the pop-up page to complete the new firmware release operation.

When a certain inverter firmware is no longer in use, Sunsynk can delete the firmware that need to be deleted in the firmware list, click the more ‘(…)’ button, and follow the prompts to complete the ‘Delete’, as shown in the figure below.

4.6. INVERTER FIRMWARE MANAGEMENT
Click ‘Operation Data’ in the menu to enter the Operation Date page.

1. Enter the inverter’s serial number (SN) for which data needs to be viewed.
2. Select the date range.
3. Click the search button to view the inverter’s operational data.

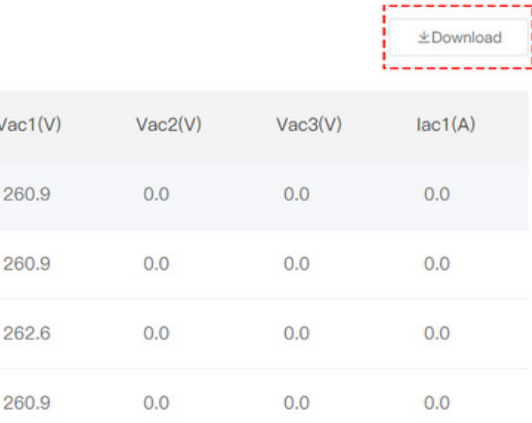

If you need to download the data to your local device, click the ‘Download’ button to save it as a file in the “.xlsx” format.
