NOTE - This information is supplementary to article the Earth Neutral Bond article which must be read before reading this supplementary article.

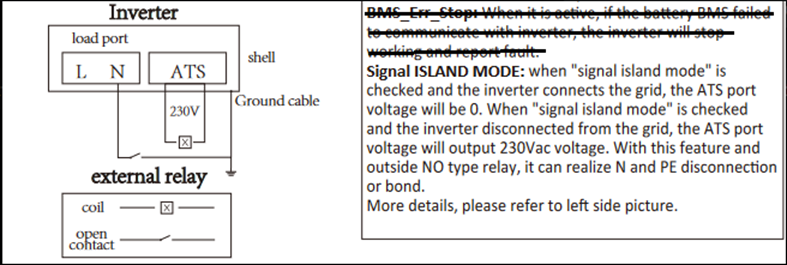

1. Effect of selecting Signal Island Mode on EN Bond Contacts.

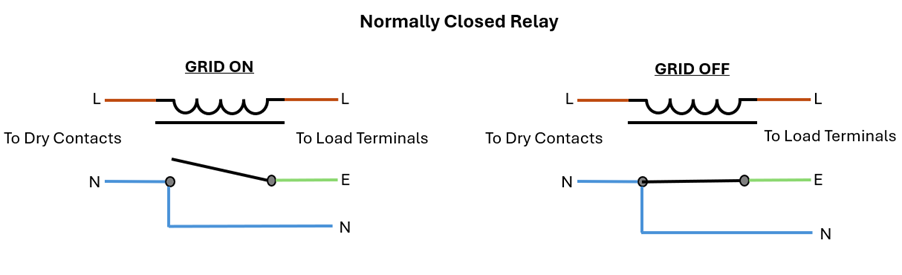

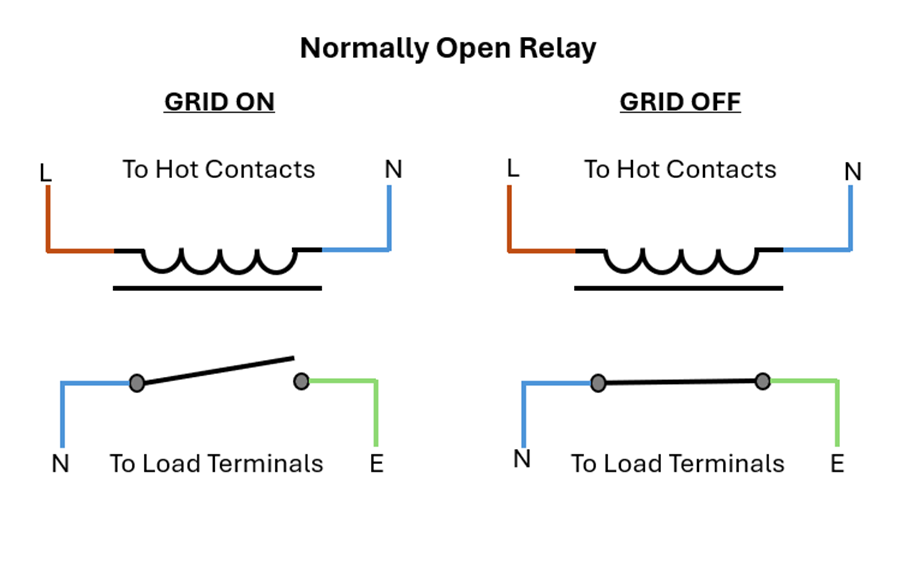

2. NC - Normally Closed Relay and Normally Open Relay Schematics.

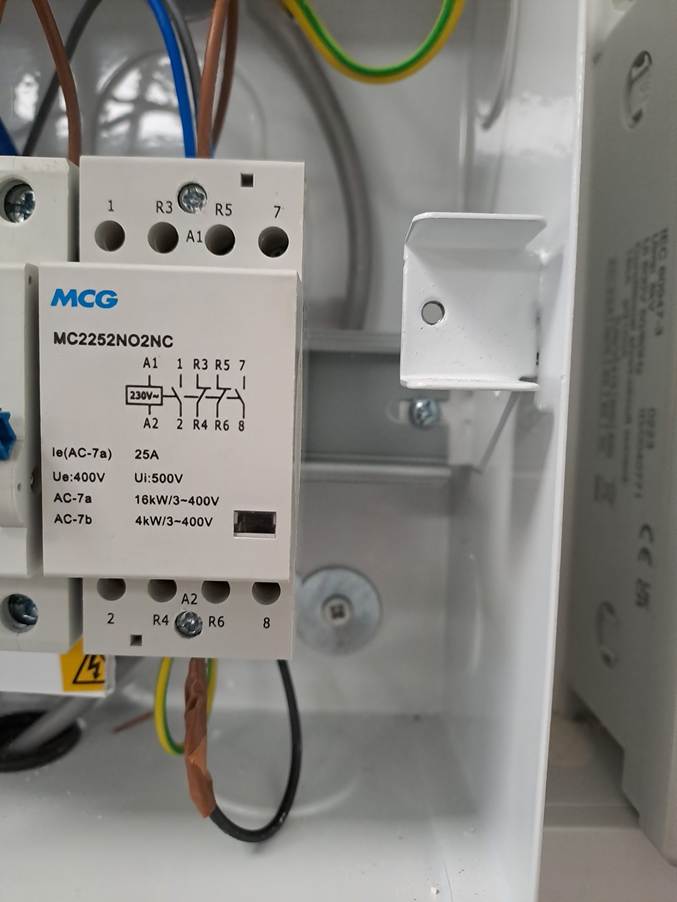

3. Typical 2x NO + 2x NC Relay Contactor - NOTE, this configuration is in Dry Contact state.

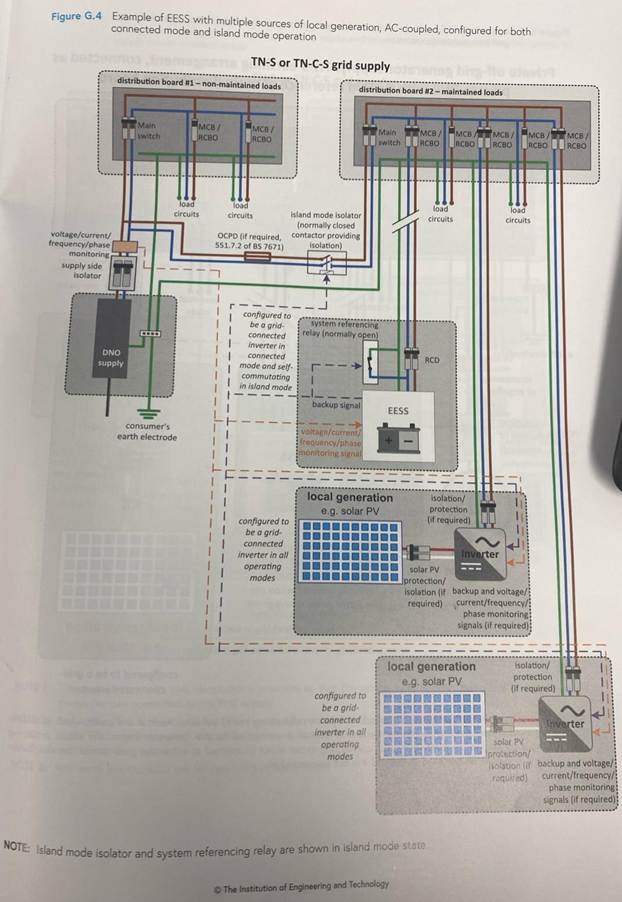

4. FOR UK & NI ONLY - Extract below from UK IET Manual showing schematic for IET EN Bond for Grid and Island Mode.
Other countries (inc. Republic of Ireland) MUST refer to their own country regulatory guidance documentation
